Pumping Units

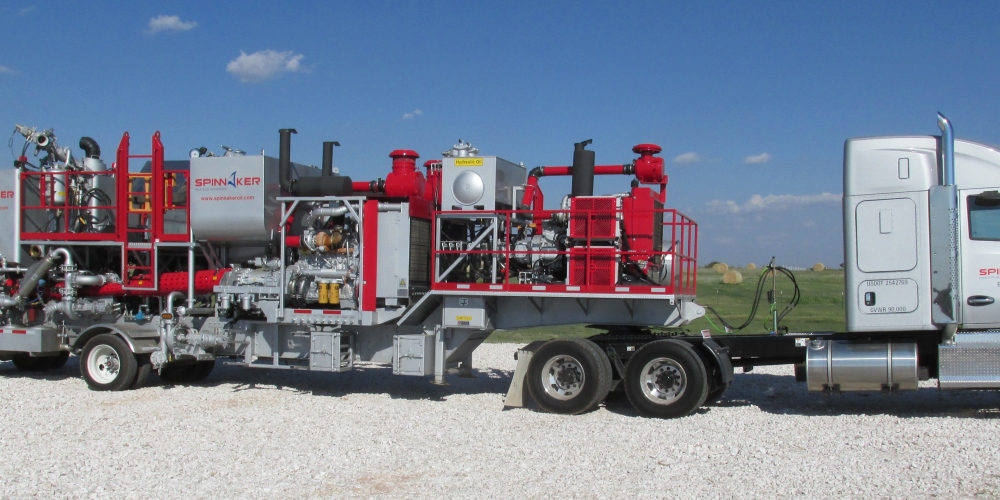

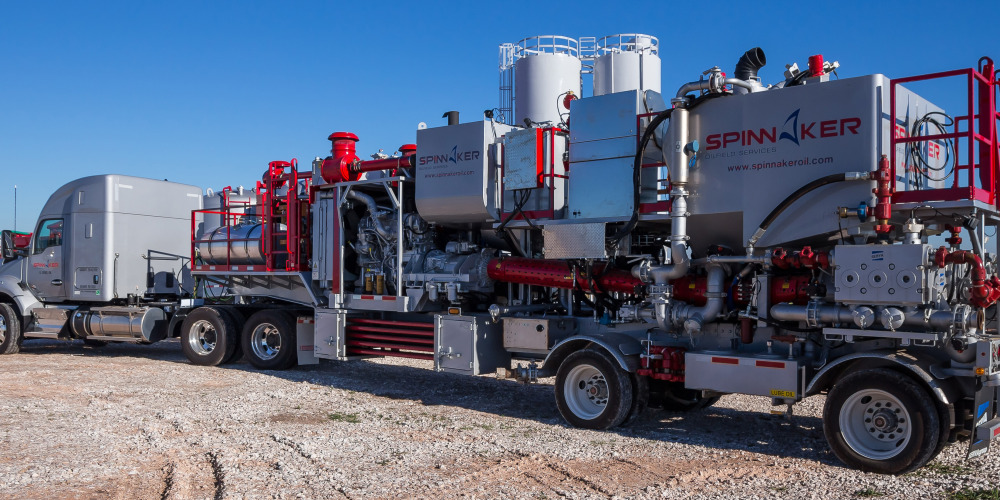

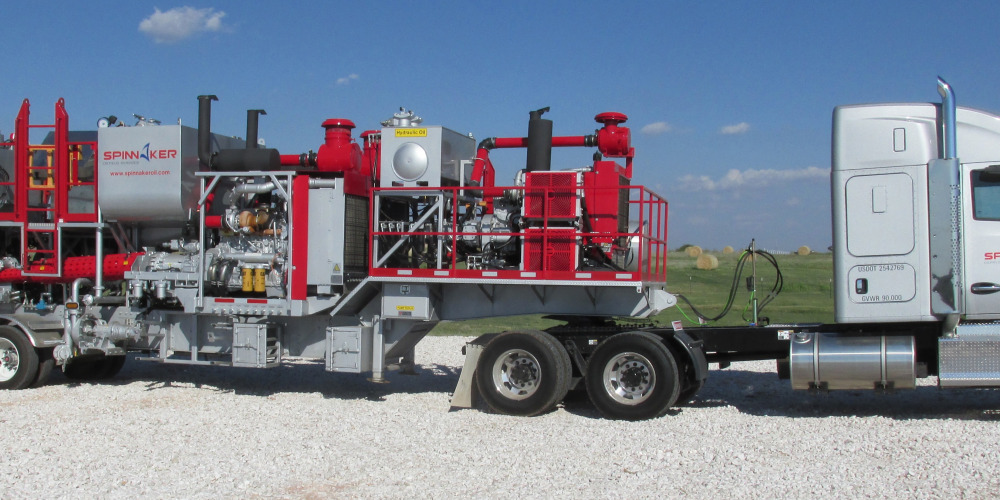

- Twin Cementer with (2) 600 HP pumps and 630 HP Engines.
- (2) Serva 600 HP Triplex Pumps.
- (1) 4” x 3” Mixing Centrifugal pump.
- (1) 6” X 5” Recirculating Centrifugal pump.
- (1) 6” X 5” Boost Centrifugal pump.
- (2) 3” Non-radioactive densometers.
- 7-bbl Mixing tank, 20-bbl Averaging Tank w/ (2) agitators, (2) 10-bbl Displacement tanks.
- Serva ACM IV for Automatic Density Control.
- Density Range – 8.33 – 22 lb/gal.
- Flow Rate Range – 0-14.4 bbl/min.
Bulk Equipment
1000 cuft Dry Pneumatic Trailer
- Transfers blended cement to storage tank on well sites.

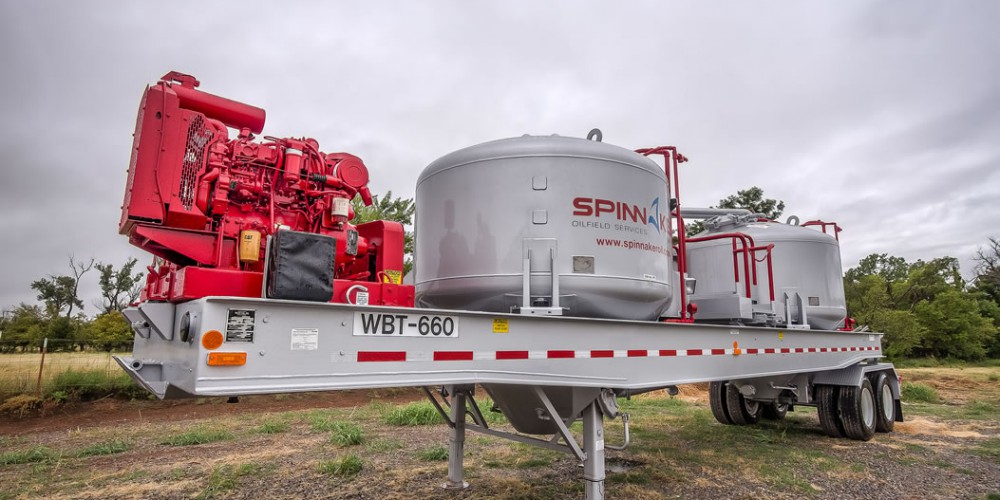

660 cuft Pneumatic Bulk Trailer
- (2) pneumatic 330 ft3tanks with 5-in. manifolds for discharge.
- 4-in. fill manifolding vent for pneumatic tank loading.
- 36 psi working pressure at -20F to 190F

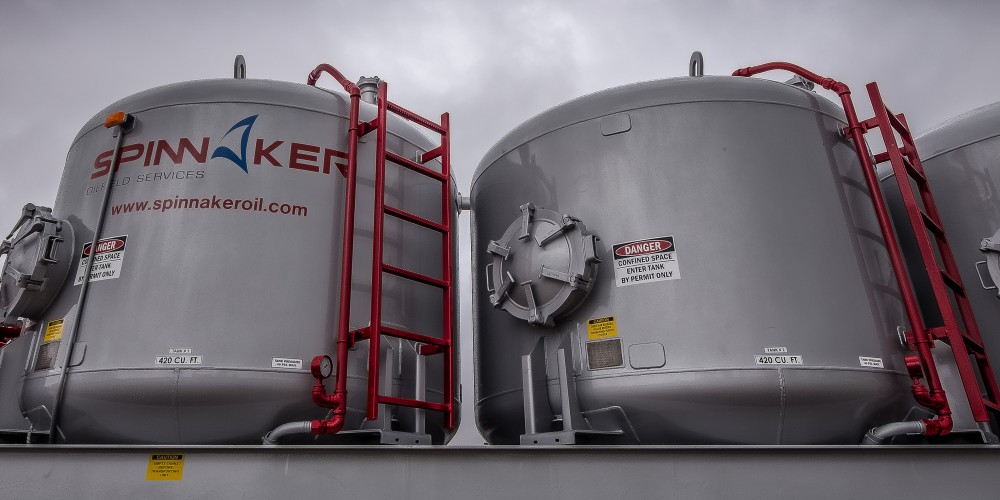

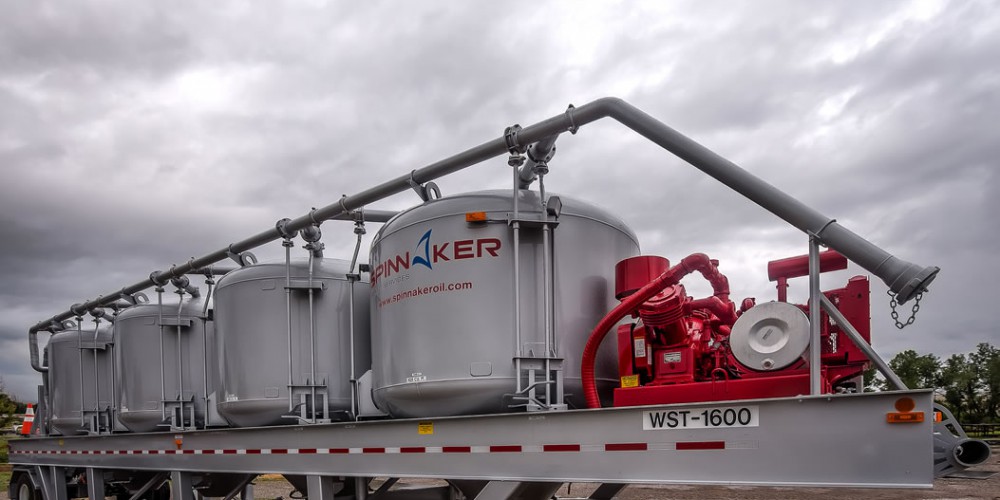

1600 cuft Pneumatic Field Storage Bin
- (4) pneumatic 420 ft3tanks rated at 40 psi.
- Tier III C4.4 Caterpillar diesel engine driving a APOG Gardner Denver air compressor skid.
*1000 cf field storage silos coming in Q4-2018
Data Acquisition
Data Acquisition and Control Unit for NitroBond
- Fully Automated Data Acquisition
- Two pump trucks simultaneous pumping
- Fully automated foamer/stabilizer metering process with manual backup
- 2 LA pumps, well marked plumbing
- 330-gallon foamer/stabilizer tank, and a 50-gal anitfreeze tank to flush lines
- Inline instrumentation (flowmeters, transducers)
- Spacious, climate controlled cabs
- 20 kV Genset powered, secondary and tertiary power sources available
- Full data backup, customization and remote monitoring available
SERVAview
- SERVAview software packages increase equipment performance, reliability and safety by reducing operator workload and providing a number of automated functions
- Full backup, data monitoring and storage
RAPTOR Controls
- Full blender control, data recording, data monitoring and data backup
- Easily compatible with other data software
